Advanced Premium Recliner Seat (Suede)

DESCRIPTION

• The ASR Recliner Seat is the perfect option for those who prefer the versatility of a reclinable seat over a fixed back bucket seat.


• Comfortable design to support your entire body over long and short racing sessions.


• Made out of high quality breathable suede material.


• Features high side bolsters for optimal support.


• Advanced SimRacing logo embroidered on the front and back of the headrest.


• Sliding seat rails included for on the go adjustments.

SPECIFICATIONS

• Seat height (from bottom to top) : 36"
• Seat width : 20.5"
• Seat length : 22" (standard tilt)
• Inner seating measurements
• Width at shoulders: 21" (broad opening)
• Width at thighs : 15" (broad opening)
• Seat depth : 19"

WHAT'S INCLUDED?

• ASR Recliner Seat Suede

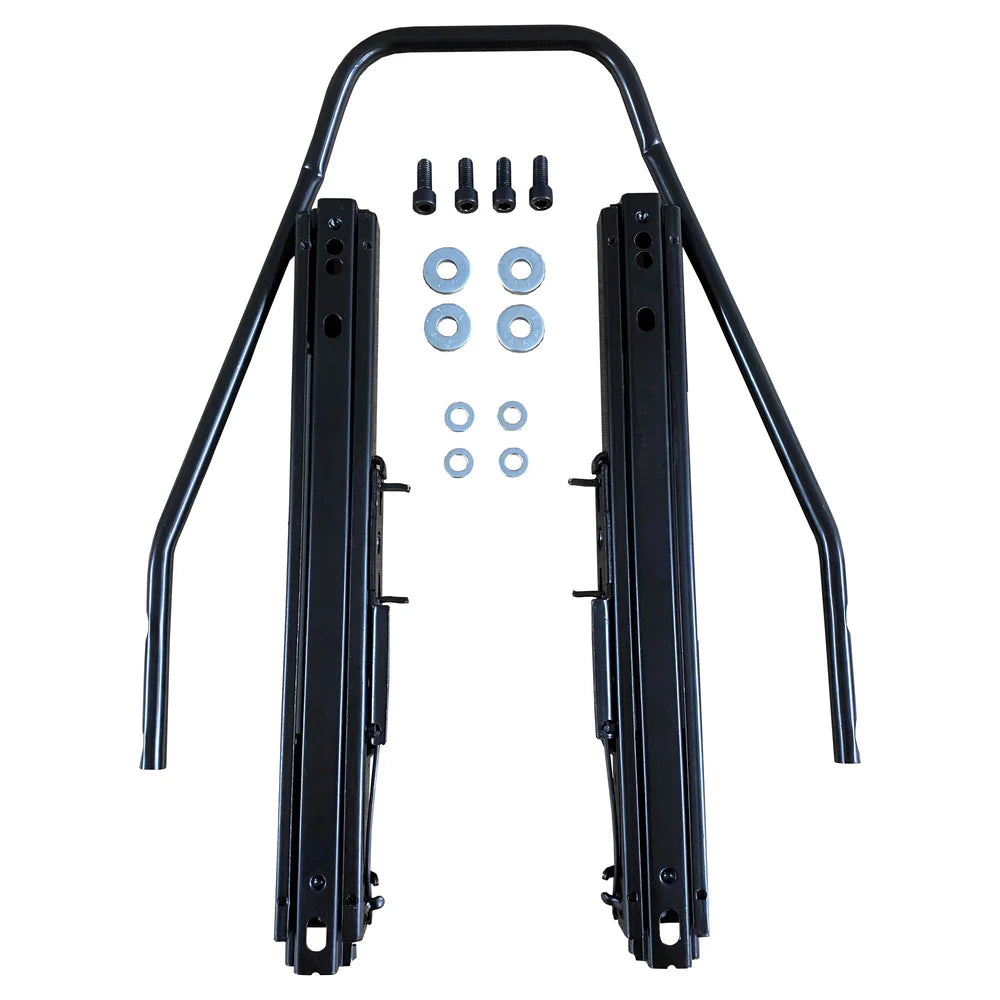

• Sliding seat rails
• No mounting hardware included (included with your Advanced SimRacing chassis)

INSTALLATION GUIDE

1. Install the 22’ profiles on the chassis. Tighten the bolts holding the corner gussets to the 22’ profile, but leave the bolts attaching the 22’ profile to the chassis loose.


2. Install the seat sliders on the seat while it is off the chassis.


3. Make sure the two seat sliders are at the same locking position.


4. Bend the U handle bar for the seat sliders to make it wider or narrower depending on fitment.


5. Install the U handle bar while being careful not to hurt your fingers.


6. Install the seat assembly on the 22’ profiles.


7. Tighten both front or rear bolts holding the sliders on the 22’ profile.


8. Slide seat forwards or backwards to have access to the other bolts. Tighten them.


9. Center the seat with the chassis by moving the whole 22’ profile and seat assembly. Be careful not to scratch the profiles.


10. Tighten the corner gusset bolts that were left loose at the beginning.


11. Your rig is ready to go!
