Advanced Sim Racing - Button Box Mount

• Our Button Box Mount is designed to be completely universal in terms of compatibility and mounting solutions, thanks to its dual sliding Universal Mounting Brackets.
• With the possibility to swivel and tilt, it will allow you to position your Button Box on your simulator in any position that you would require to replicate the interior of a real race car.
• It is made in Canada from the same quality hardware and pieces that we use for all of our products.

SPECIFICATIONS

• Maximum gap between both Universal Mounting Brackets : 8"
• Universal Mounting Brackets vertical size : 5"
• Maximum mounting pattern that can be achieved : 8" x 5"

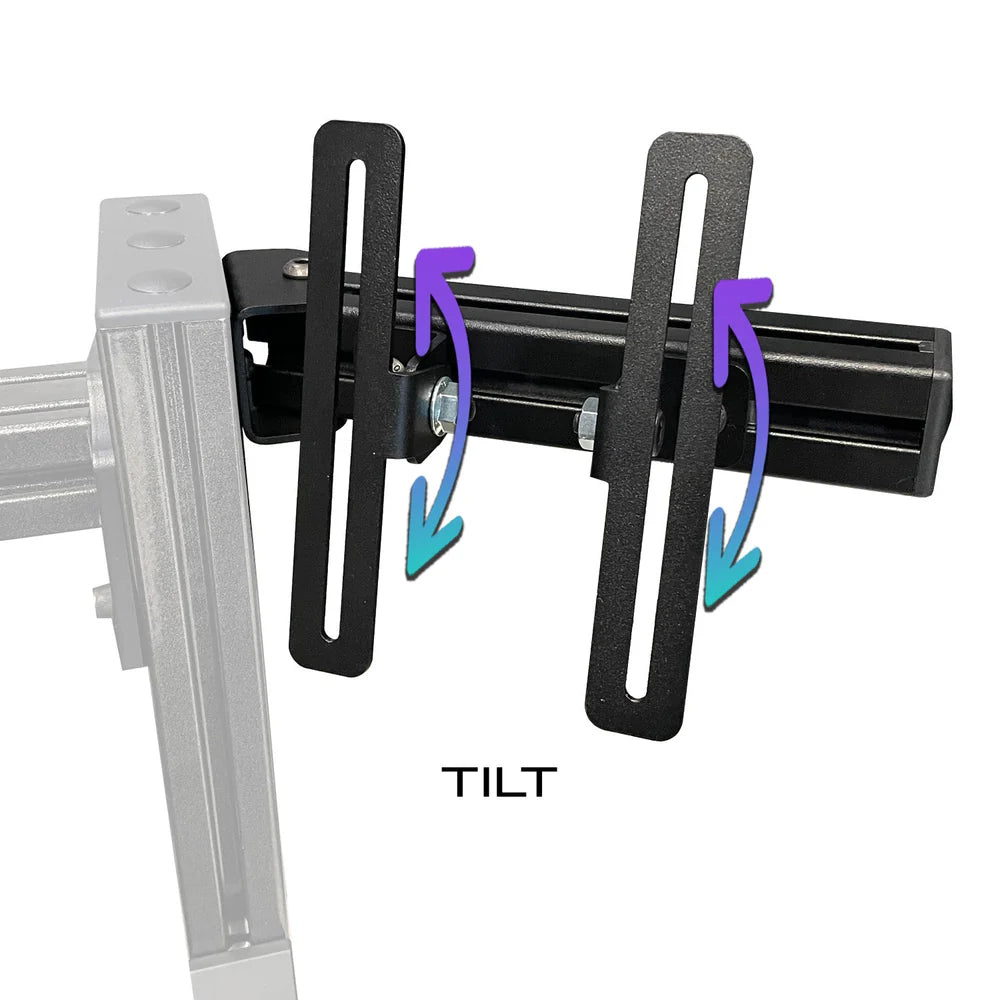

• Universal Mounting Brackets tilt angle range : 90 degrees up or down

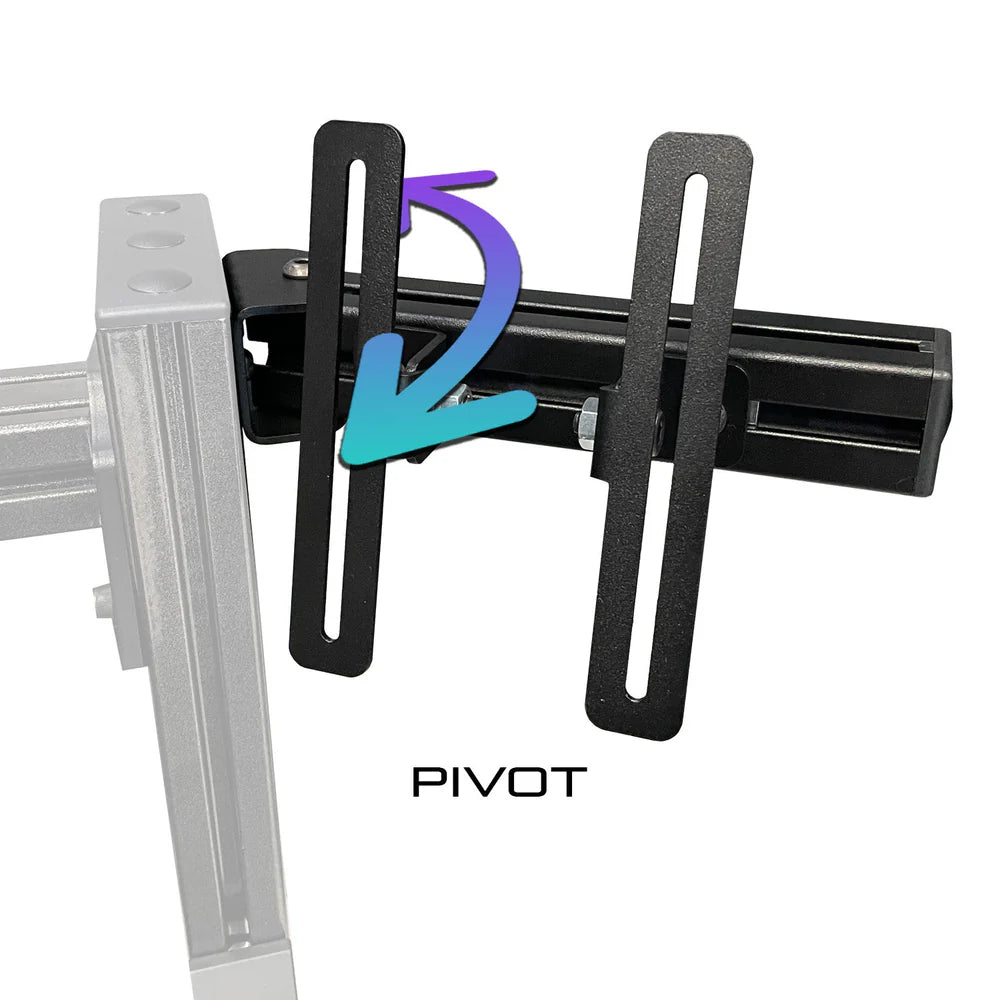

• Pivot angle range for the aluminum support beam : 180"
• The Universal Mounting Brackets support either M4, M5 and M6 screws
• Mountable on any aluminum profile part of your Advanced SimRacing chassis

WHAT'S INCLUDED?

• Box 1 (Button Box Mount) 9" x 6" x 2"
• 1 x Aluminum profile 8" x 1.5" x 1.5"
• 1 x 3/32" Steel U-Bracket
• 2 x 1/8" Steel L-Bracket
• 2 x Universal Mounting Brackets
• 2 x M6 Screws (12mm)
• 2 x M6 T-Nuts
• 4 x M8 Button Head Screws (12mm)
• 2 x M8 T-Nuts

COMPATIBILITY

• All Button Box with fixing points on the back

ASSEMBLY GUIDE

The Button Box Mount assembly guide is available right here.

More assembly guides available on our dedicated page.
