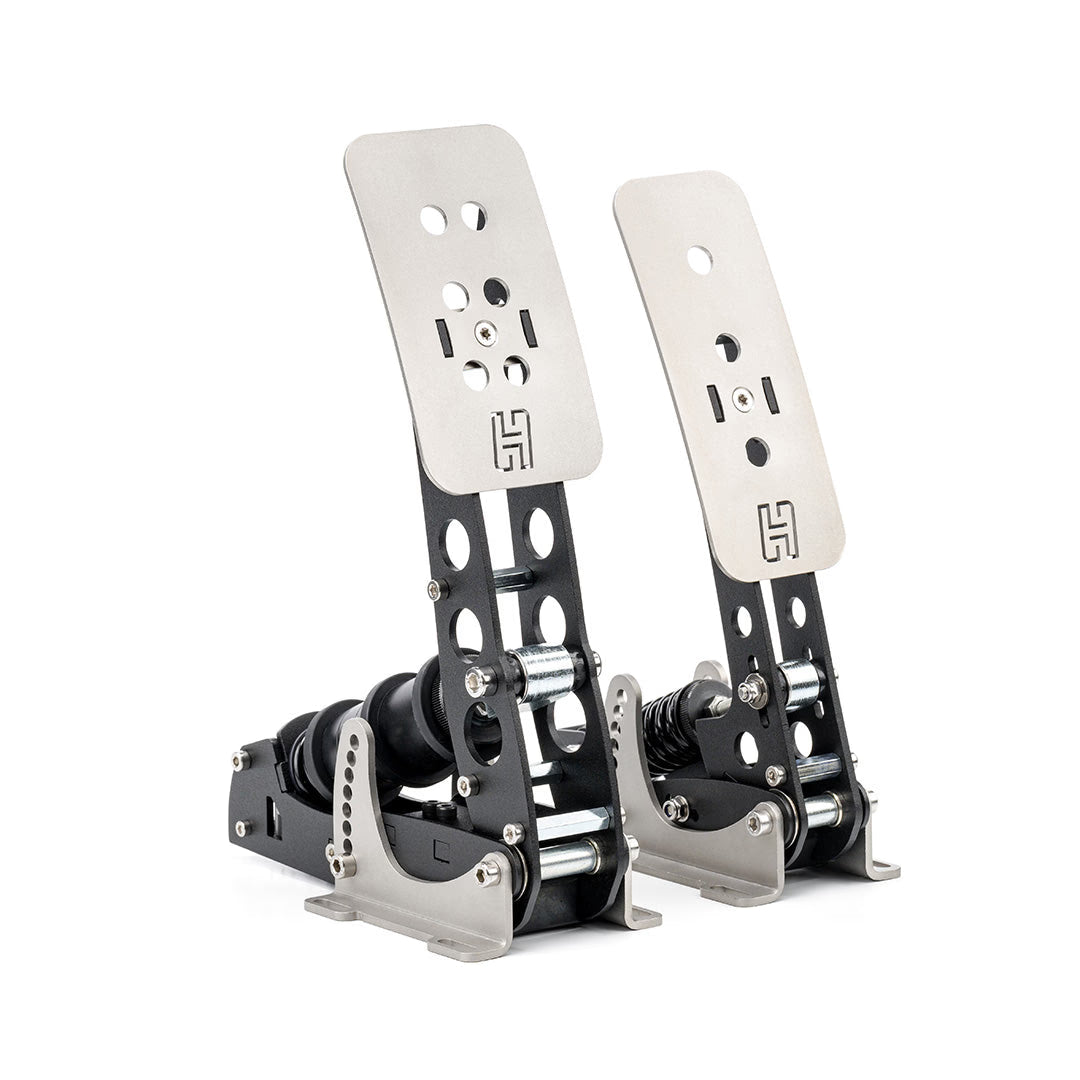

Heusinkveld Sprint Pedals [Throttle & Brake Set]

FEATURES

Want to improve your lap times and race with more consistency? The Sprint pedals are designed to help you do exactly that. Strong, accurate, and highly customizable, they give you the control and feedback you need to improve your race pace.

Strong, Compact & Adjustable

A perfect choice for both casual sim racers and professional esports drivers.

Unmatched Accuracy

Not all load cell pedals are equal. Sprint pedals use properly implemented load sensors based on mathematical design models, giving you a true 1-to-1 relationship between your driving inputs and the pedal output to the simulator.

Optimize Your Setup

Sprint pedals offer a wide range of adjustment options. Soft or stiff pedals, long or short travel, low or high forces, it’s your choice.

Gain a Competitive Advantage

Every tenth of a second counts. Heusinkveld Sprint pedals provide a realistic feel that helps you improve your driving style, become more consistent, and get faster each lap. Fine-tune your brake feel with 6 different brake firmness settings.

Be in Control with SmartControl

With Heusinkveld SmartControl software, you can easily configure deadzones, brake force, and customized pedal output curves. You can even change key settings while driving.

Compact & Easy to Install

Made from robust laser-cut steel, Sprint pedals are built to handle high forces while maintaining a compact design. This makes them easy to mount in virtually any simulator.

ABOUT THE SPRINT PEDALS

Overview

Heusinkveld Sprint pedals are strong and highly adjustable, with 6 different brake settings. They are the perfect pedals for home-use simulators, helping you improve consistency and become a quicker sim racer.

Sprint pedals offer a highly customizable experience, allowing you to fine-tune your setup for the perfect balance of feel and responsiveness. With advanced load cell braking, smooth pedal travel, and robust durability, the Sprint pedals are built to withstand intense racing sessions. Whether you’re aiming for consistency or maximum performance, Sprint pedals offer the reliability and precision to take your racing to the next level.

The Heusinkveld Sprint pedals offer an incredibly responsive and precise feel, with each pedal delivering smooth and consistent action. The brake pedal provides solid, firm resistance that mimics the sensation of real-world braking, offering a high level of control and feedback. Sprint pedals help elevate your skills and push your sim racing to new heights.

Mathematical models were developed to calculate pedal movement and the required force, accurately predicting how each pedal will perform in any configuration. Design tolerances have been fine-tuned to minimize play in every pedal. The pedals are insensitive to dust and dirt and do not wear out, resulting in excellent accuracy and durability over time. All critical pivot points feature slide bearings and have undergone automated durability testing to ensure reliable performance after one million cycles.

Adjustment Options

Each pedal offers different adjustment options, allowing you to fine-tune your setup for your preferred driving position and feel.

All Pedals:

• Pedal angle
• Pedal plate height

Throttle:

• 5 pedal travel settings
• Overall pedal force
• Pedal spring preload

The throttle pedal gives you excellent control over any car and can be configured to suit your preferences.

Brake:

• Pedal stiffness with a dual-stage brake system and 6 resistance settings
• Coil spring preload

Clutch:

• Pedal force
• Pedal spring preload

The clutch pedal features a regressive spring mechanism that simulates a typical concave clutch curve.

Software:

• Maximum brake force
• Output curves
• Deadzones

Components

The Heusinkveld Sprint 3-pedal set consists of a clutch, throttle, and brake pedal.

Mounting

Each pedal is equipped with four mounting slots, allowing forward and backward adjustments for optimal ergonomics. Because the Sprint pedals can handle relatively high operating forces of up to 65 kg at the brake pedal, they must be installed on a very rigid base.

Possible mounting solutions include aluminum profile beams, a thick drilled metal plate, or the Heusinkveld Sprint Baseplate.

The following mounting materials are included:

• 12 × M5 x 12 mm bolts
• 12 × M5 x 20 mm bolts
• 12 × M5 washers
• 12 × M5 flanged nuts

Electronics

The electronics have been integrated into the brake pedal, allowing for a clean setup with minimal wire clutter.

The controller board features a conformal coating to protect it from moisture and dust. The product as a whole is CE certified and has been tested for compliance with applicable European EMC standards and regulations.

SPECIFICATIONS

WARRANTY

Heusinkveld provides a 24-month warranty starting from the date of delivery. Repairs and/or replacement deliveries do not extend the warranty period.

The warranty means that defects will be remedied free of charge within a reasonable period of time, either by repairing or replacing the products and/or parts in question. Products and/or parts replaced become the property of Heusinkveld. The warranty does not include any further right to compensation from Heusinkveld.

The warranty does not cover defects resulting from:

• Incorrect setup and/or installation
• Non-compliance with the safety regulations stated in the manual
• Inappropriate use
• Inappropriate operation
• External influences, such as transport damage and impact damage
• Repairs and modifications not carried out by Heusinkveld
• Use of non-original parts

Heusinkveld does not warrant that the products are suitable for the purpose for which the Buyer wishes to use them. Under no circumstances are the products suitable for use other than in a simulator.

The products are not suitable for use on public roads, on a test track, or as part of an electric vehicle.
