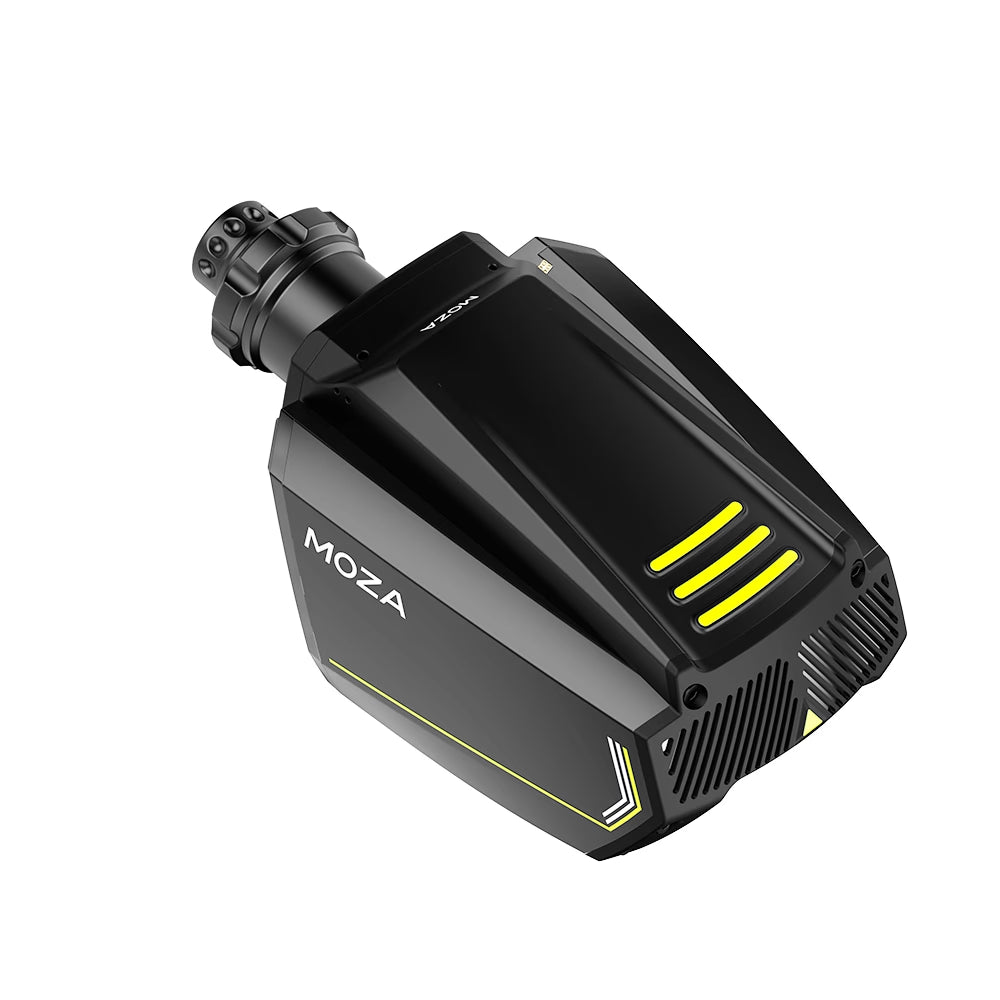

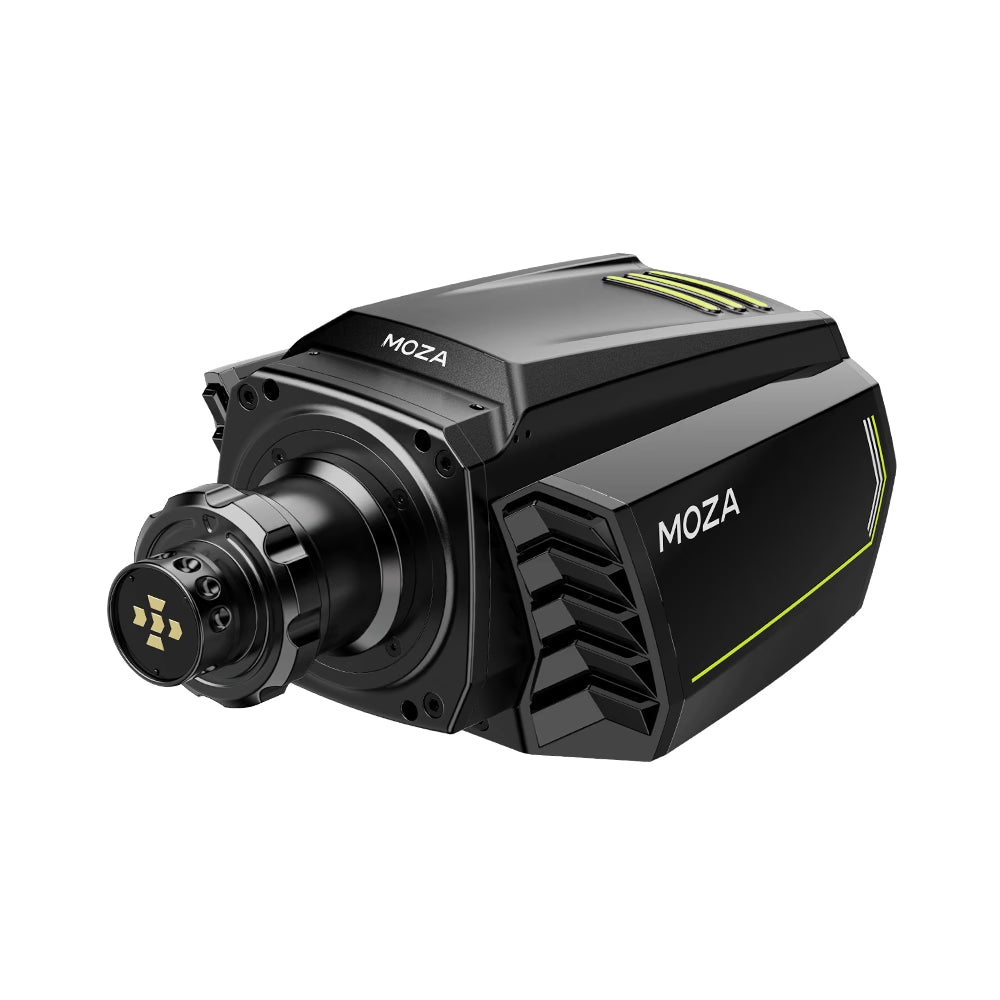

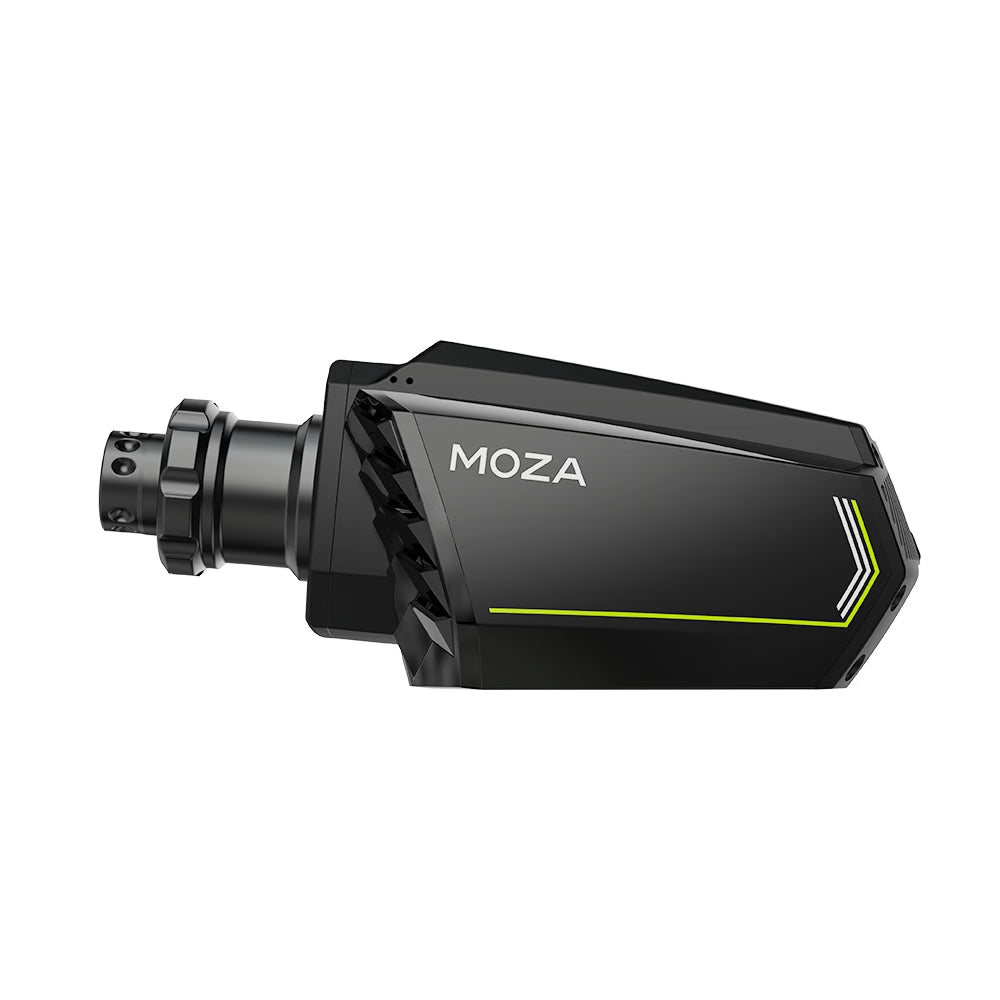

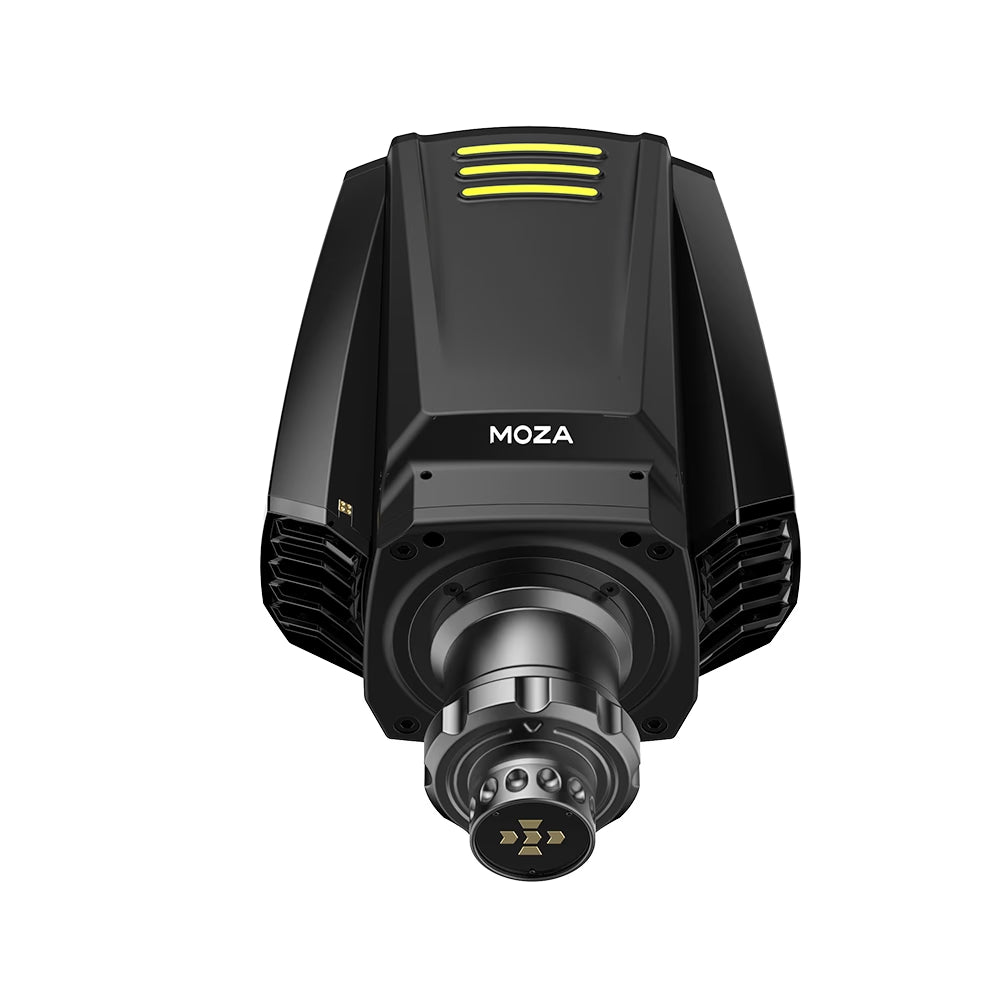

MOZA Racing R16 V2 Wheel Base

FEATURES

The MOZA R16 sim racing wheelbase is a formidable powerhouse that combines performance and style. With a peak torque of 16 Nm, it delivers impressive force feedback for an immersive racing experience. The all-aluminum alloy body and a sleek supercar-inspired design ensure great reliability without compromising on style. With hands-off protection and ultra-low static torque, you can focus on the race without distractions. Featuring 262,144 points of resolution, every subtle movement is faithfully captured. Take control with the MOZA Pit House App Control, allowing you to fine-tune settings with ease and jump into the race with its one-click launching features.

16Nm of Direct Drive Power
With a huge 16Nm of torque, the R16 provides an impressive torque range to give the kind of accurate immersion that only direct drive wheels can provide. From GT to F1, feel every moment.

21-Bit Magnetic Encoder with 280MHz High-Performance Processor
Divides each full rotation into 2,097,152 precise steps.
Delivers microscopic 0.00017° resolution.
Enables ultra-smooth control feel and instant response.
Reproduces exceptionally detailed force feedback.

MOZA High-Performance Servo Motor
Innovative Segmented Rotor Design
Asymmetric segmented skew design. Significantly reduces cogging torque & EM vibration. Near-silent operation at all speeds.

High Torque Density
Optimized slot-fill copper windings.
High-permeability silicon steel core.
NdFeB permanent magnets for maximum output.

18-Slot/16-Pole Configuration
Multi-slot/pole design minimizes torque ripple. Enhanced damping for smoother feedback. Delivers precise and detailed steering response.

Wide Torque Range
Low back-EMF design. Maintains consistent torque at high RPM. Eliminates abrupt torque drop-off.

Carbon Fiber Wrapped Rotor
Automotive-grade rotor protection.
Effectively suppresses eddy current losses.
Superior thermal management for sustained performance.

NexGen 4.0 Force Feedback Algorithm
Enhanced Dynamic Feedback.
More refined and detailed force feedback.
Sharper, more defined curbs and rumble strip sensations.
Instant response to weight shifts and tire slip.
New cogging torque compensation for ultra-smooth steering.

Game FFB Decoupling
Breaks down FFB signals into individually tunable elements.
Dial in your setup exactly how you like it-your wheel, your rules.

Force Feedback Equalizer
Adaptive vibration tuning based on driving scenarios.
Delivers only the essential feedback while minimizing unnecessary vibration.
Strikes the perfect balance between realism and clarity for a truly immersive experience.

Custom Force Feedback Curve Tuning
Fully adjustable, non-linear output for precise handling. Amplifies useful force cues while reducing distractions. Helps drivers sense traction loss sooner, enhancing control and confidence.

iRacing 360Hz Mode
Delivers richer and more responsive force feedback. Heightens immersion and driving precision. Available via MOZA Pit House after the May iRacing update.

FFB Interpolation Algorithm
Smooths out abrupt torque spikes and dips. Ensures a more natural progressive force curve under all conditions.

Intelligent Temperature Control System
Our advanced system continuously monitors the temperature of the motor and electronic components in real-time, employing intelligent temperature control strategies to deliver stable and reliable performance in all circumstances.

Industrial Conductive Slip Ring
The base and the steering wheel are connected through a automotive-grade conductive slip ring with a life span of over 5 million revolutions. The unique patented design has extremely high stability and durability while achieving infinite high-speed rotation.

Cloud-Based Mobile App Control
Enjoy on-the-fly changes using the MOZA app! Force feedback, pedal settings, and more can all be changed in real-time. One-click importing allows easy hassle free setup transfers to new devices.

Sturdy All-Aluminum Body
The R16 is made of aluminum alloy, giving the base a rock-solid feel and weight.

Ultra Low Static Torque
Feel everything through an optimized motor design, offering practically zero torque ripple, notching or cogging. Combined with powerful torque delivery, hard braking, curbs, and drifts are clearer and stronger than ever before.

Speed-dependent Force Feedback Dampening
This function will increase the damping FFB effect as the vehicle speed increases and reduces the dampening as the vehicle speed decreases to accurately mimic a real race car, resulting in greater high-speed stability and low-speed maneuverability.

Force Feedback Equalizer
MOZA’s FFB equalizer allows full customization and fine-tuning of the FFB effects spectrum for a perfect setup in any conditions.

One-Click Launching
Save your game configuration in the MOZA Pit House launcher to quickly launch into a game from within the Pit House.

Multiple Connection Ports
With the ability to directly connect MOZA pedals, shifter, handbrake, and digital dash to the base, you not only conserve USB ports on your PC but also unlock the potential for simultaneous use of multiple devices.

Front Mount Compatibility
Featuring four front-facing holes designed for MOZA's front mounting bracket, this versatile design supports both front and side mounting options, optimizing legroom and catering to formula-style seating preferences.

SPECIFICATIONS

WARRANTY

MOZA Racing warranty covers all defects in materials and workmanship for all products sold by http://www.mozaracing.com. Only original, unaltered, and unmodified materials and workmanship are covered by this policy. This warranty does not cover damage caused by improper deployment, misuse, accidents, neglect, or the natural breakdown of materials over time. Products should be returned to us for evaluation. Items with defects in materials and workmanship will be repaired, exchanged, or refunded. For more information about repair, exchange, and returns, please visit MOZA's website’s after-service policy.
