Product Details
FEATURES
5.5 Nm of Torque from Direct Drive Power: With a punchy 5.5Nm of torque, feel everything the road has to give with the power of direct drive.
Race in Limited Space: Use the R5 Table Clamp that comes with the bundle to mount the MOZA R5 to a table or desk.
Unbeatable Rigidity & Durability: The MOZA R5 bundle combines aviation-grade aluminum, high-quality leather, and high-strength steel for rock-solid durability.
SPECIFICATIONS

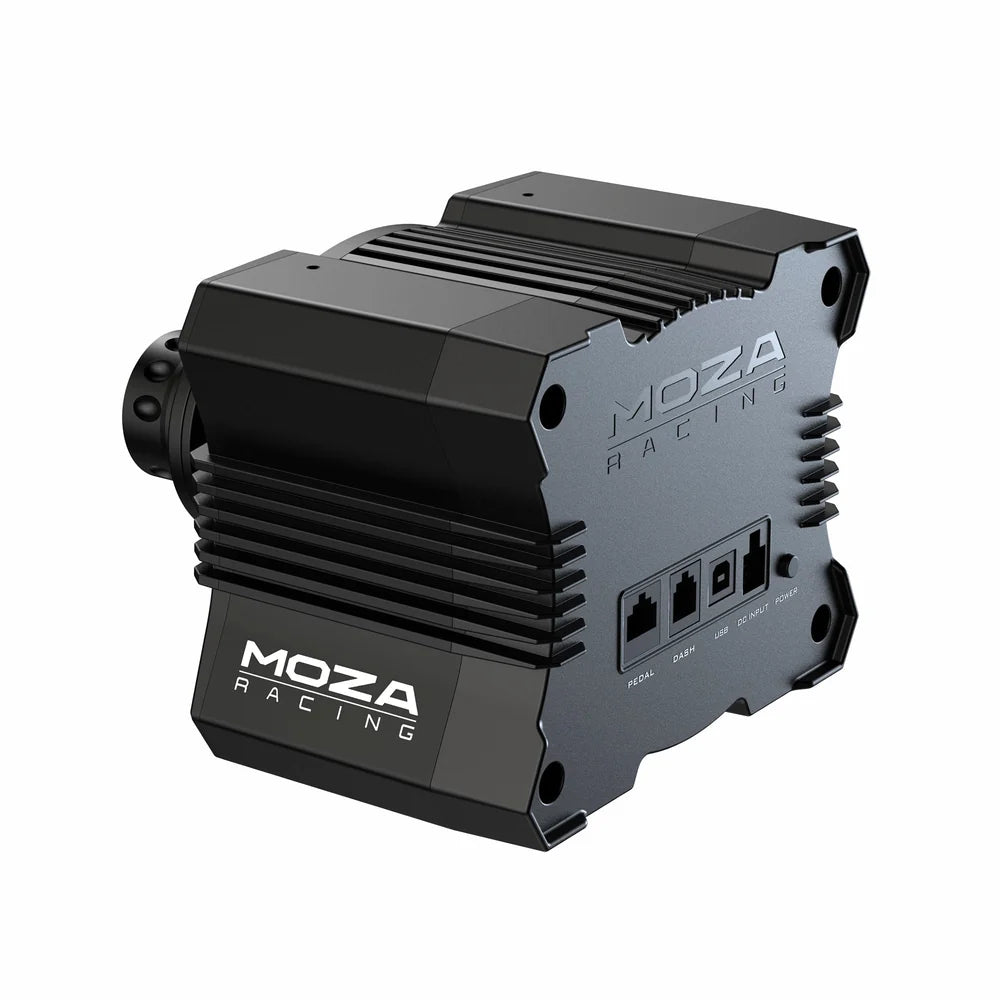

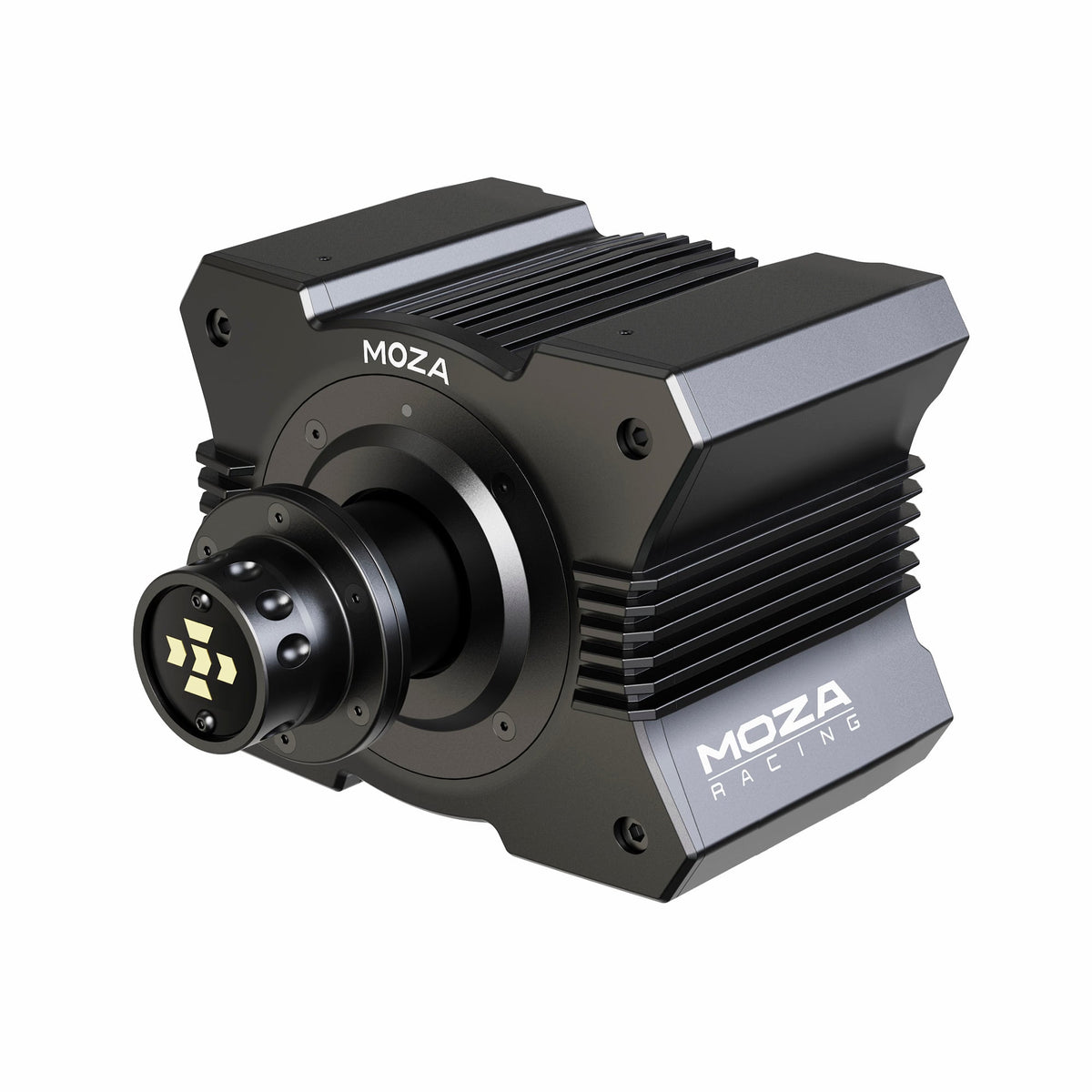

DD R5 Wheel Base
- Applicable Platform: PC
- Drive Form: Direct Drive
- Maximum Turning Angle: Infinite Rotation
- Housing Material: Aviation Grade Aluminum Alloy
- Color: Black
- Maximum Torque: 5.5Nm
- USB Refresh Rate: 1000Hz
- Input Voltage: 110V~220V AC → 12V DC
- Encoder Resolution: 15 bits
- App Functionality: Supported
- Quick Release: Supported
- Interface: Power, Data, Display, Pedals, Wheel Input
- Accessories: Manual and Warranty Card, Power Supply, Data Cable, Toolkit
- Mounting Method: 4 holes on the bottom
- Desktop Mounting Clip: Standard
- Online Firmware Upgrade: Supported
- Emergency Stop Switch: Optional
- Firmware Upgrade: Applicable

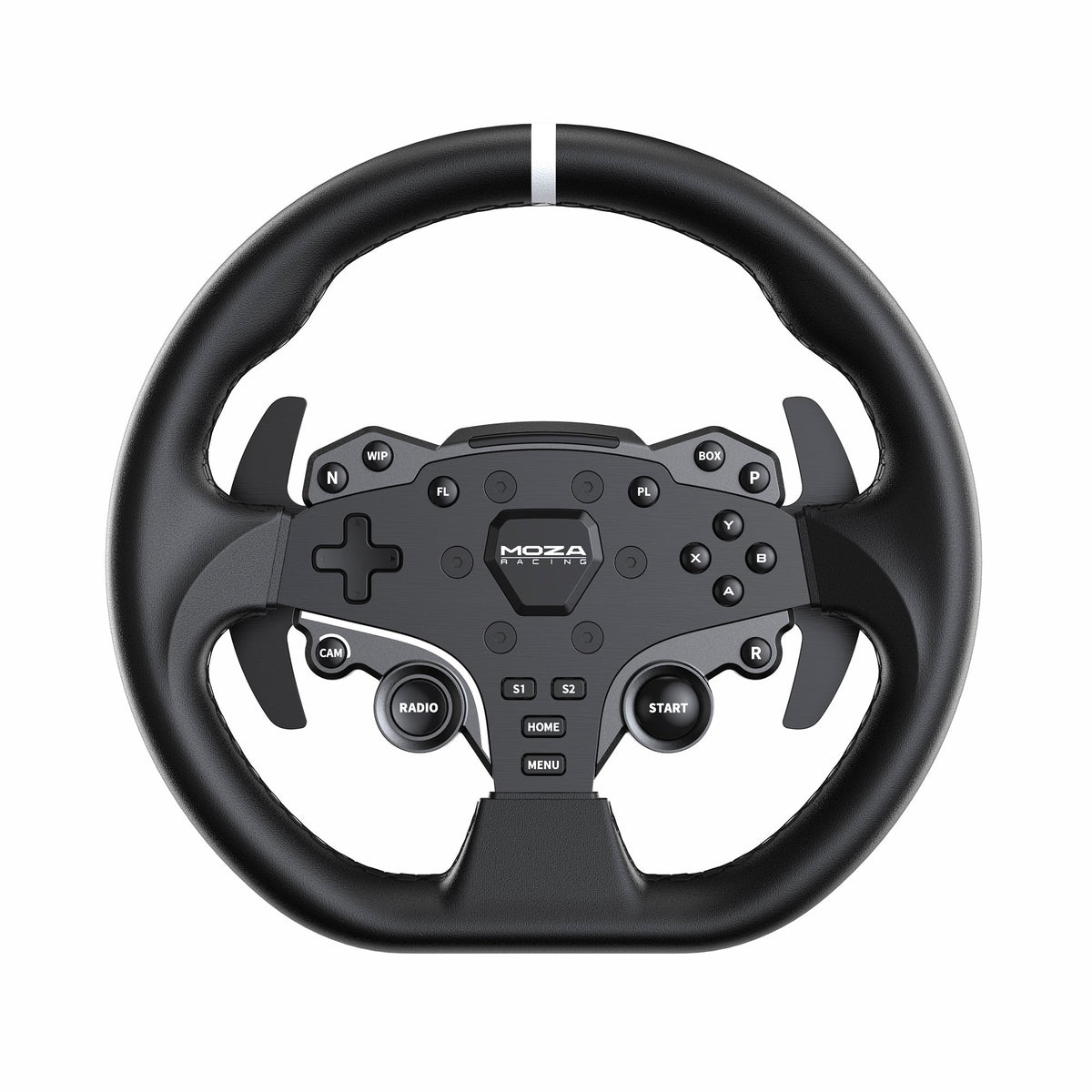

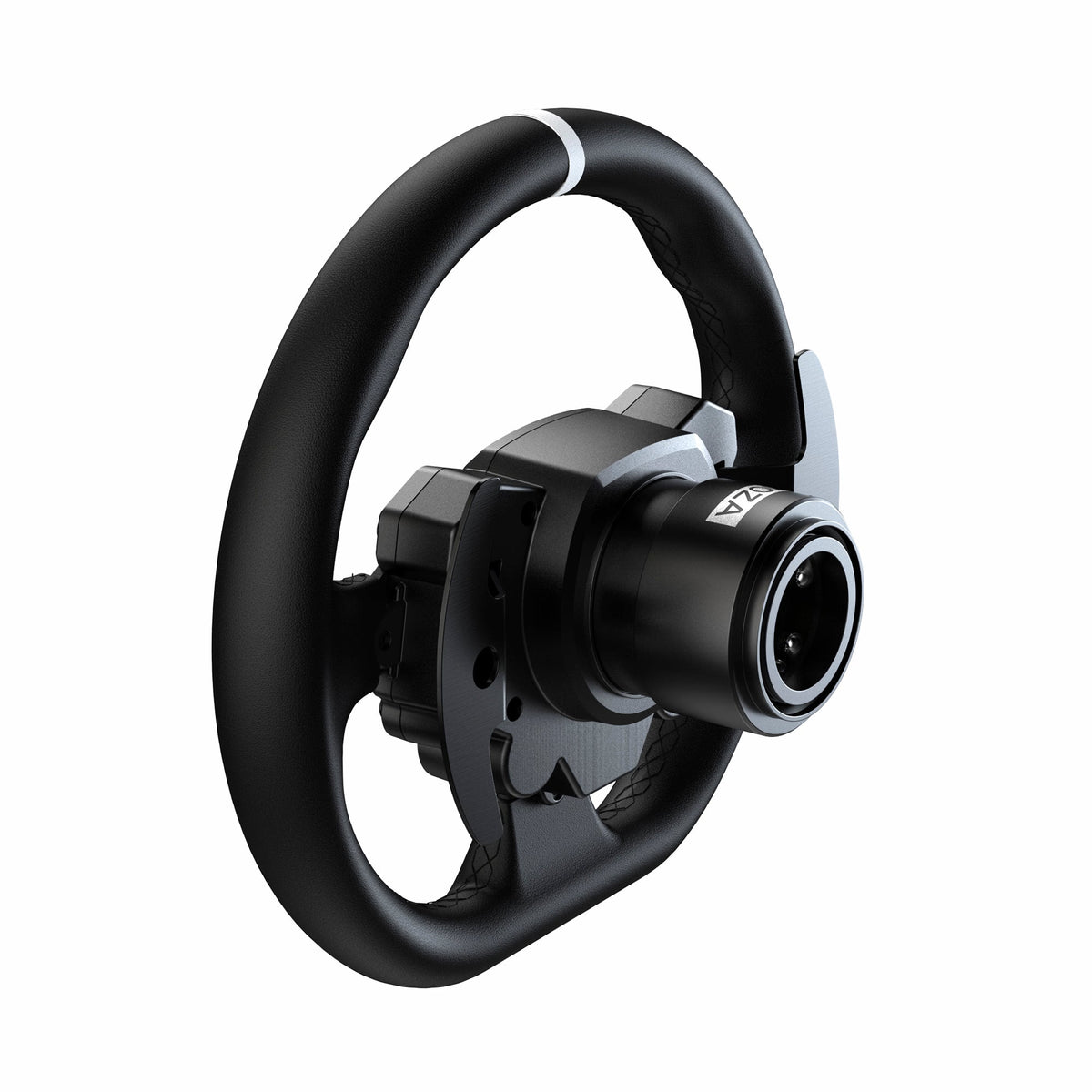

ES Steering Wheel
- Wheel Material: Microfiber Leather
- Frame and Front Plate Material: Aluminum Alloy
- Dial Material: Aluminum Alloy
- Size: 11 inches
- Buttons: 22
- LED Lamp Beads: 10
- Intelligent Telemetry: Supported
- Configurable LEDs (MOZA Pit House): Supported
- Disassembly Method: Quick Release System

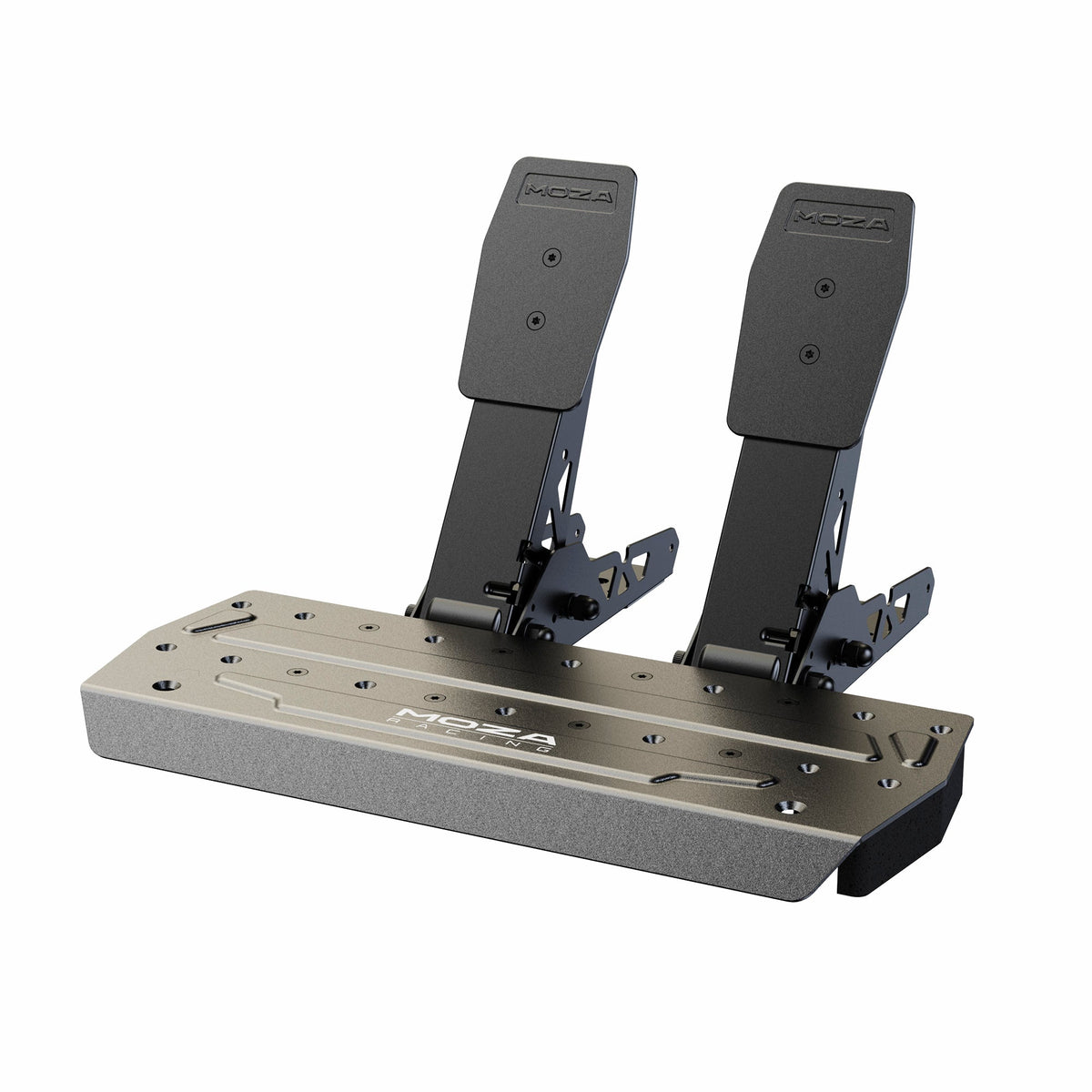

SR-P Lite Pedals
- Material: High-strength Steel
- Plate Material: High-strength Steel
- Color: Black
- Pedal Sensor Type: Hall Sensor
- Pedal Spacing: Adjustable
- Pedal Plate Height: Adjustable
- Pedal Input Adjustment: Supported
- Pedal Input Reversal: Supported
- Pedal Output Curve Adjustment: Supported
- Anti-Slip Pad: Included
USER MANUAL
WARRANTY
MOZA Racing warranty covers all defects in materials and workmanship for all products sold by MOZA Racing. Only original, unaltered, and unmodified materials and workmanship are covered by this policy. This warranty does not cover damage caused by improper deployment, misuse, accidents, neglect, or the natural breakdown of materials over time. Products should be returned to us for evaluation. Items with defects in materials and workmanship will be repaired, exchanged, or refunded. For more information about repair, exchange, and returns, please visit MOZA's website's after-service policy.
