Product Details
FEATURES
Simucube introduces a new 2-in-1 passive pedal - Simucube Co-Pedal, which can be modified into throttle or clutch with Simucube's Arc technology. It's crafted with a new design, and it's inspired by motorsport drive-by-wire systems. Passive pedal like you never felt before.
Next Gen Passive Pedal: Throttle Or Clutch
2-In-1 Throttle And Clutch
Can be easily assembled into a throttle or clutch
Throttle Mode
- Smooth Throttle Feel with Patented Mechanics
- Consistent Hall Angle Sensor Feedback
- Meant to be Combined with ActivePedal
- Adjustable Travel and Preload for Full Control
- 3-Year Warranty
Clutch Mode
- Realistic Bite Point Feel
- Inverted Mounting
- Meant to be Combined with ActivePedal
- Easily Swappable to Clutch Configuration
- 3-Year Warranty

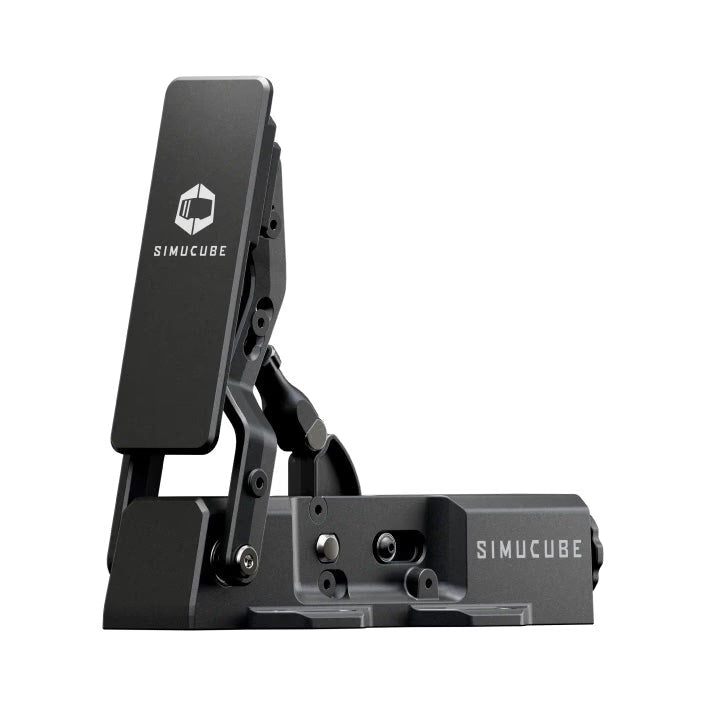

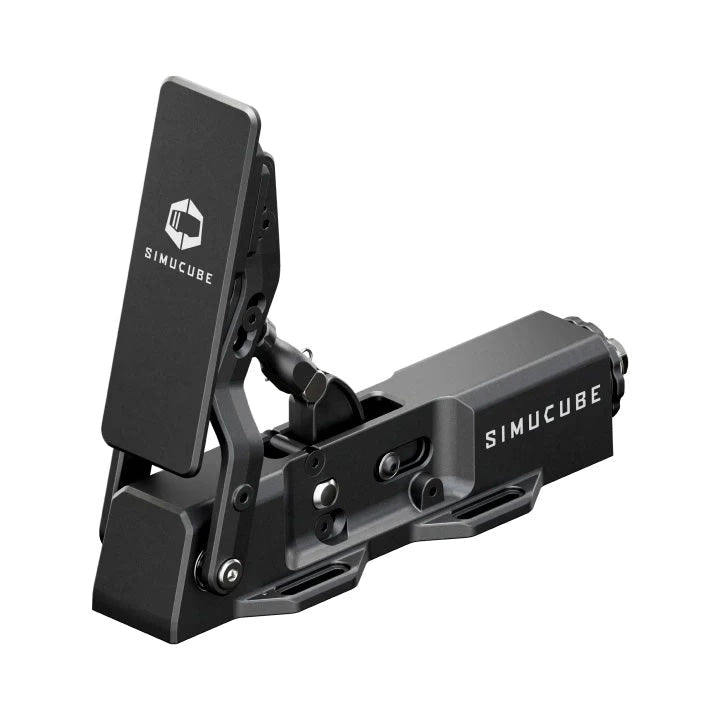

Simucube Co-Pedal
Patent Pending Arc Technology
At the heart of Simucube Co-Pedal lies Simucube's Arc technology. This patented modular system allows you to physically transform the pedal’s function with an innovative Arc profile. Featuring a robust frame construction that eliminates flex, paired with an Arc profile, which provides a crisp mechanical and immediate feel of the wanted profile. The Arc profiles provided by Simucube have been manufactured with ultra precision and are built to last, as is the pedal itself.
What is Arc Technology
A patent-pending modular system that physically transforms your pedal's function. Swap between throttle and clutch in 60 seconds.
Throttle Mode
The linear Arc piece provides smooth, progressive throttle control. Perfect for precise acceleration.
- Progressive spring tension curve
- Smooth linear response
- Adjustable travel distance
Clutch Mode
The engagement Arc piece delivers authentic clutch feel with distinct bite point.
- Realistic engagement point
- Heavy-duty spring system
- Professional-grade durability
Hall Angle Sensor
Inspired By Motorsport Drive-By-Wire Systems
Simucube Co-Pedal utilizes a hall angle sensor for position measurement, mirroring throttle and clutch pedals in high-end race cars. Unlike traditional load cell-based systems that measure force, this design focuses on precisely measuring the angle of the pedal, providing a more accurate and consistent experience. This eliminates dead zones and ensures consistent sensor feedback across the entire pedal travel.
Adjustability
Find the Perfect Angles
- Preload
- Travel Length
- Stem Length
- Pedal Angle
- Pedal Face Angle
- Pedal Face Height
Simucube Co-Pedal

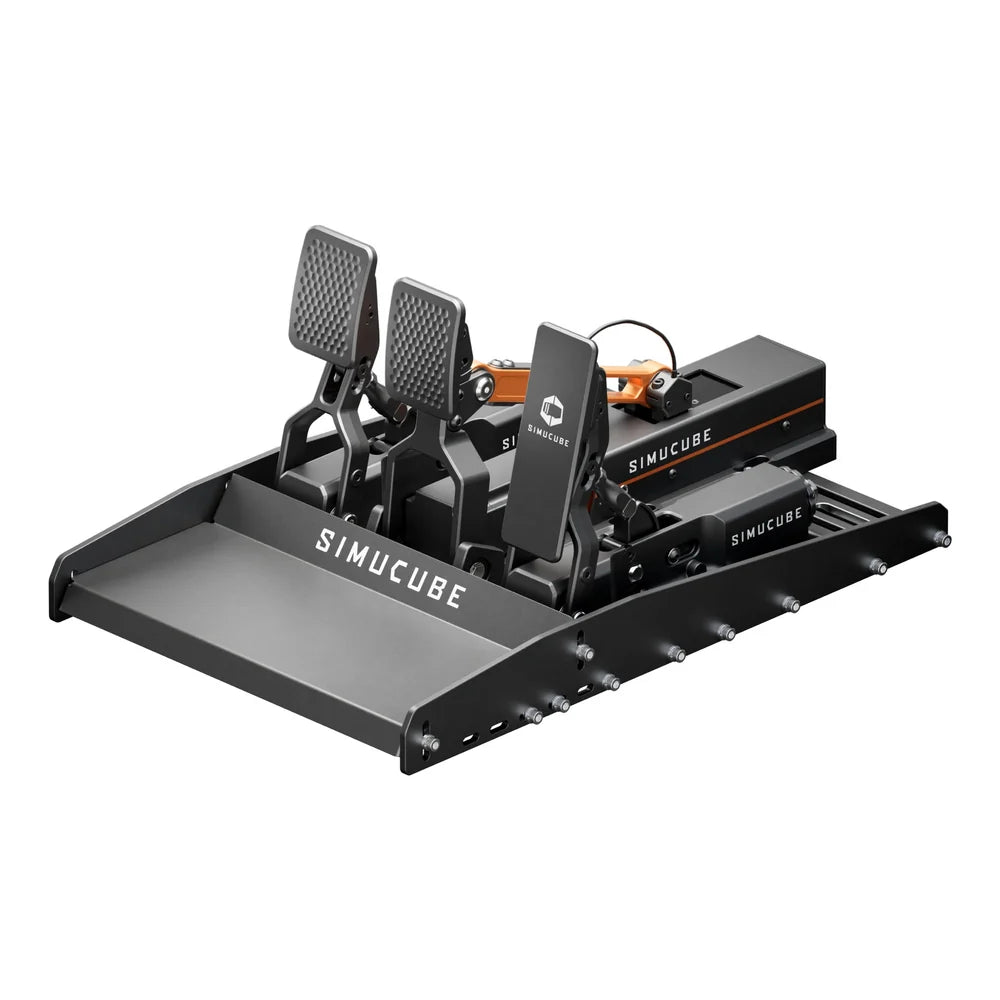

Meant To Be Combined With ActivePedal
The Co-Pedal seamlessly integrates with ActivePedal Pro and Ultimate, giving you the ultimate sim racing pedal setup.
SPECIFICATIONS
| Product Dimensions [W×H×D] | 242 mm x 83 mm x 308 mm |
| Product Weight | 1.6 kg |
| Mounting Hole Pattern | 4x M5 Slot |
| Adjustable Travel | 30 mm – 50 mm – 70 mm |
| Rest Angle | 4-14 degrees |
| Preload Range | 0 mm – 13 mm |
| Position Measurement | Load Cell Input Compatible Hall-Effect Position Sensor |
| In the Box |
|
| Compatibility |
|
